Industrial DC charger redundancy guide

Compare industrial DC battery charger architectures for substations, switch-tripping supplies and mission-critical DC auxiliary systems where load continuity, alarm visibility and maintainability matter.

DC charger selection context

Redundancy decision

A single converter is not redundant. Effective redundancy starts with at least two converters, and the selected N+1, N+2 or N+3 architecture should come from a whole-system risk assessment and FMEA.

Operating cases

The cluster should be checked for load-only survival after converter failures and, where required, for load plus minimum charge or boost/equalize current in degraded operation.

Battery and DC bus

The battery remains the ride-through element when charger output or AC supply is lost. Protection settings, DC distribution and charger limits must be coordinated so one failed item does not compromise the full DC bus.

BTCA supervision

Penbro's BTCA system supervises the converter population, battery and load sensing, alarms, float/boost behavior and degraded operation, so redundancy is treated as a monitored system behavior rather than only a hardware count.

Mission-critical DC backup power systems

Penbro Kelnick DC charger systems are intended for industrial backup power duties where the DC bus must remain available for protection, control, tripping and emergency operation. Typical applications include electrical substations, switch-tripping circuits, DC auxiliary supply panels and rugged plant environments that cannot tolerate loss of control power.

The architecture can use locally manufactured converter modules stacked inside 19-inch cabinet systems to provide parallel capacity and N+ redundancy. From charger sizing to battery integration, DC distribution and monitoring accessories, the design review should treat the charger, battery and load as one coordinated backup power system.

Penbro's BTCA supervision supports diagnostics, alarms, remote communication and float/boost control across the converter population. This makes redundancy visible in operation instead of leaving it as only a hardware count.

Critical systems should also be reviewed for degraded operation: converter failure, controller failure, communication loss and reduced charging modes must not unexpectedly drop the DC load. The calculator below helps frame that review before final engineering verification.

For autonomy and recharge assumptions before final charger selection, use the industrial battery capacity calculator.

Preliminary sizing

DC charger converter cluster calculator

Output

Estimated result

Minimum count for selected failures

N+1 (2 converters)

Smallest all-mode cluster

N+2 (3 converters)

Converters surviving fault

1 of 2

Load-only after fault

10.0 A / converter

Load + min charge

11.5 A / converter

Load + boost/equalize

25.0 A / converter

Limiting rating

25.0 A / converter

Limiting DC power

2.75 kW / converter

Operating result

Boost unavailable

Architecture comparison

Converter count check

This table checks degraded operation after the selected converter failure count. If one converter is selected as failed, a single-converter system has no converter left; set failures to 0 to check non-redundant healthy operation. With the current inputs, the limiting healthy single-converter duty is 25.0 A.

Cluster / selected faultPer-converter dutyOperating-mode checkBTCA view

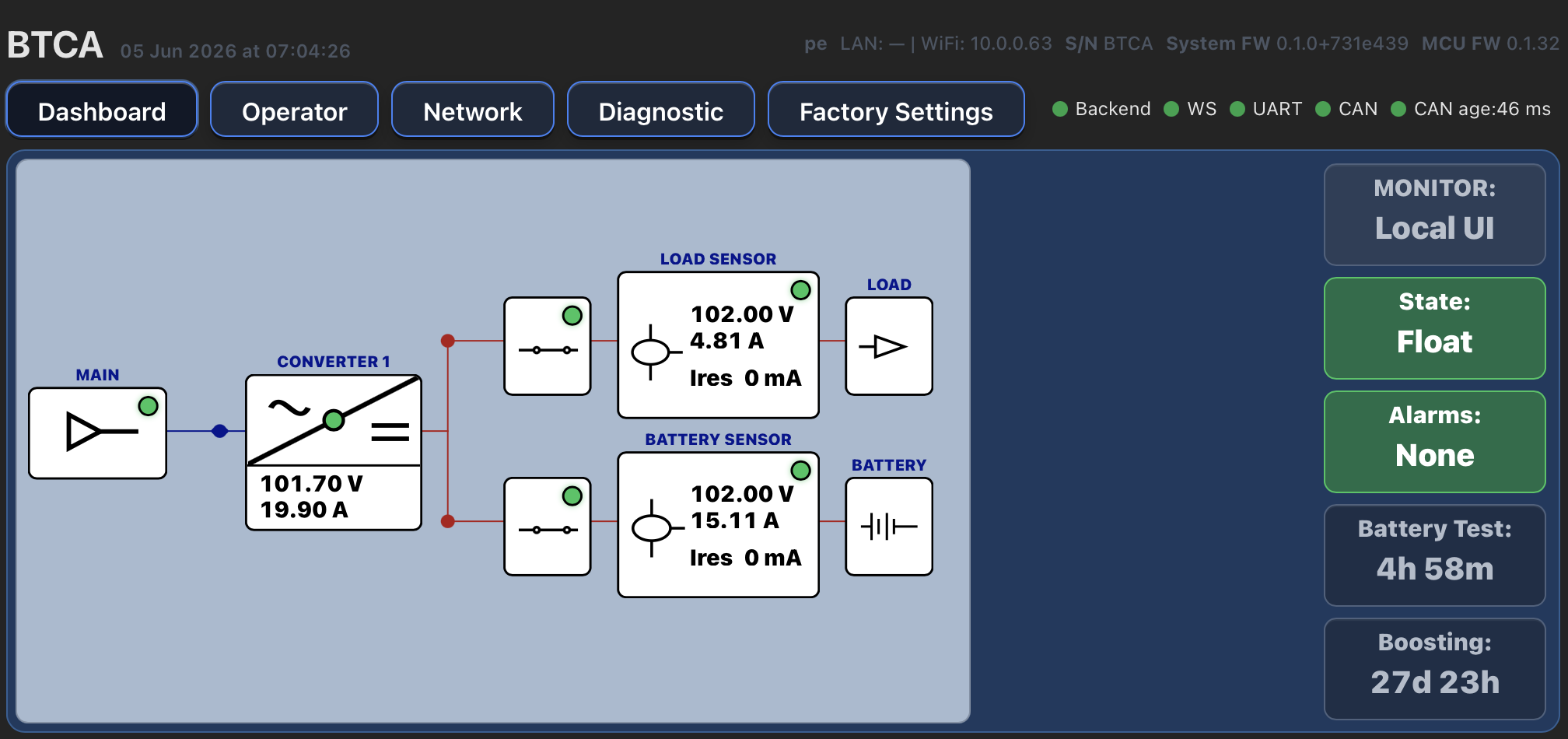

N+0

Installed:
1 converter
Selected fault:
1 failed
Remaining:
0 converters

Load: No converter remains

Charge: No converter remains

Boost: No converter remains

Load: No survivorCharge: No survivorBoost: No survivor

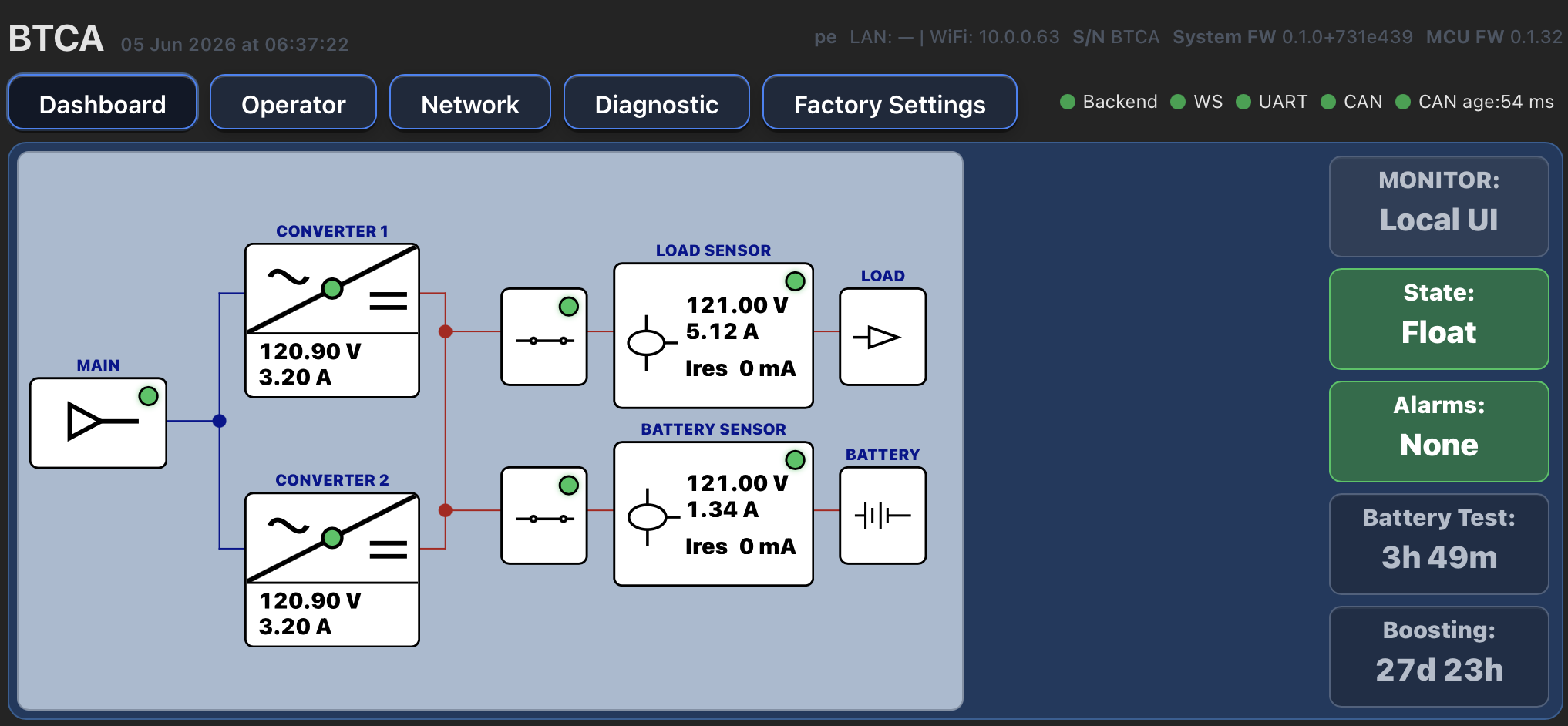

N+1

Installed:
2 converters
Selected fault:
1 failed
Remaining:
1 converter

Load: 10.0 A, 1.10 kW

Charge: 11.5 A, 1.26 kW

Boost: 25.0 A, 2.75 kW

Load: PassCharge: PassBoost: Boost unavailable

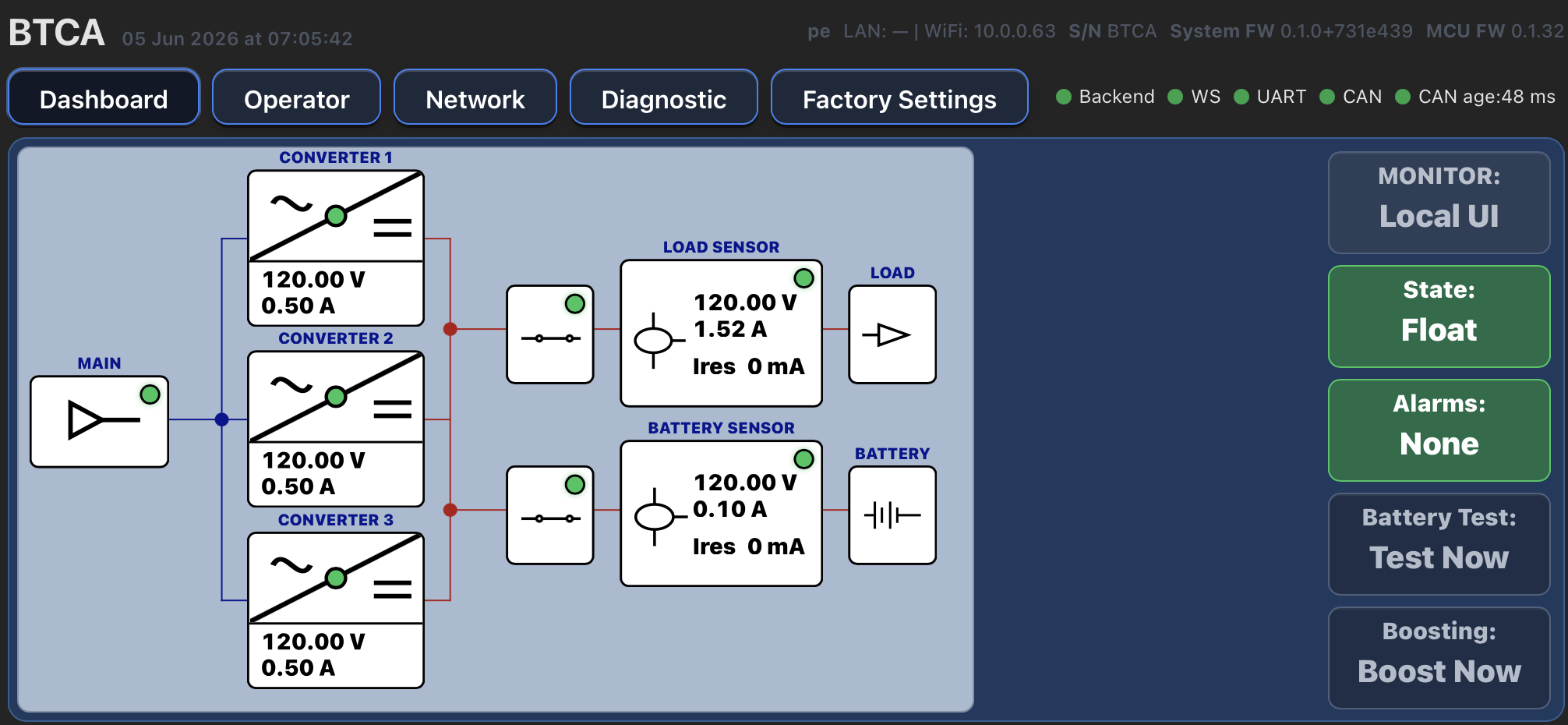

N+2

Suggested
Installed:
3 converters
Selected fault:
1 failed
Remaining:
2 converters

Load: 5.0 A, 0.55 kW

Charge: 5.8 A, 0.63 kW

Boost: 12.5 A, 1.38 kW

Load: PassCharge: PassBoost: Pass

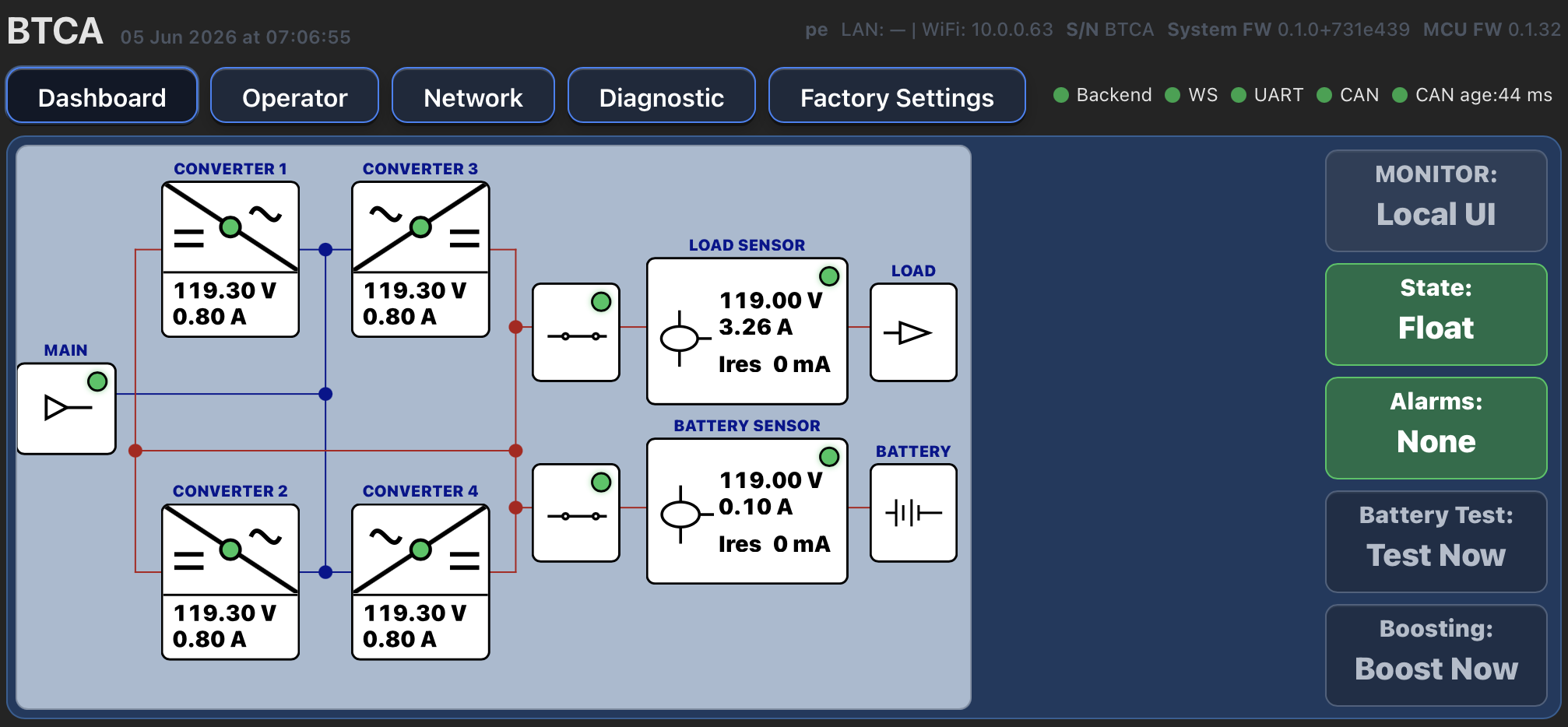

N+3

Installed:
4 converters
Selected fault:
1 failed
Remaining:
3 converters

Load: 3.3 A, 0.37 kW

Charge: 3.8 A, 0.42 kW

Boost: 8.3 A, 0.92 kW

Load: PassCharge: PassBoost: Pass

If load passes but charge or boost is unavailable, the charger cluster can keep the DC load supplied in that condition, but the battery charging mode must be inhibited or reduced.

Request sizing review

Send the selected DC voltage, load current, battery charge and boost current, converter rating and accepted converter-failure case for a more detailed charger architecture check.

Final design must be checked against project specifications, applicable standards, site conditions and manufacturer data before procurement or commissioning.
